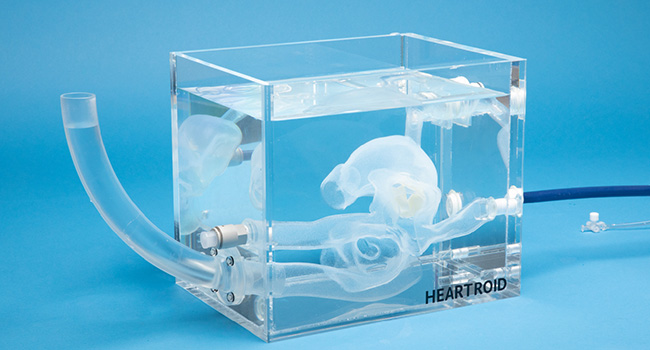

TV Model
Structure

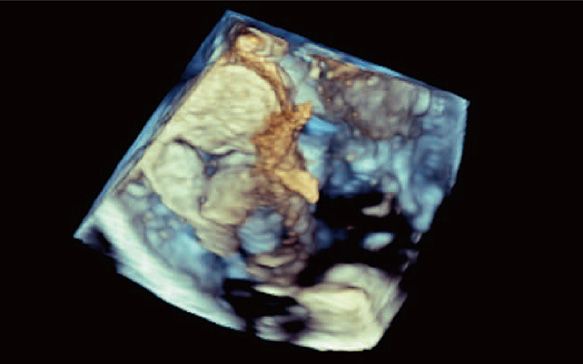

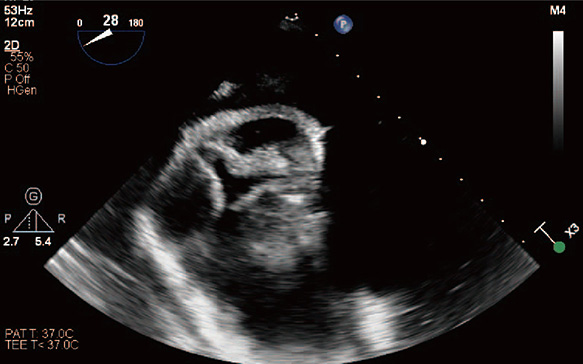

This model allows simulation training of percutaneous tricuspid valve clipping procedure (TEER : transcatheter edge-to-edge repair) under fluoroscopy and transesophageal echocardiography guidance. The tricuspid valve can open and close triggered by the pulsatile flow generated by the pump.
- Components -

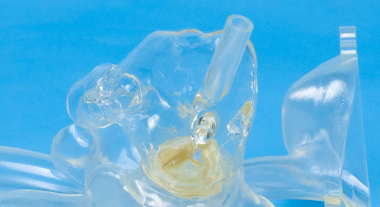

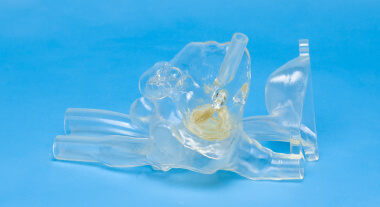

Heart Model for TV
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.

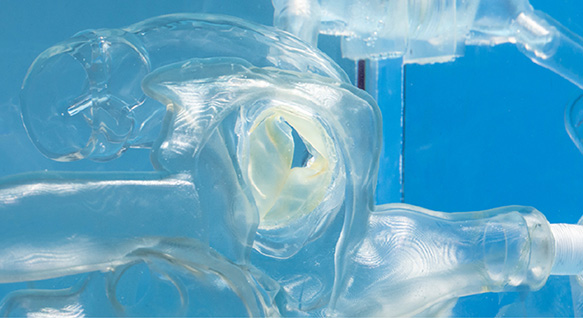

Valve part
One of the valves shown below is included.

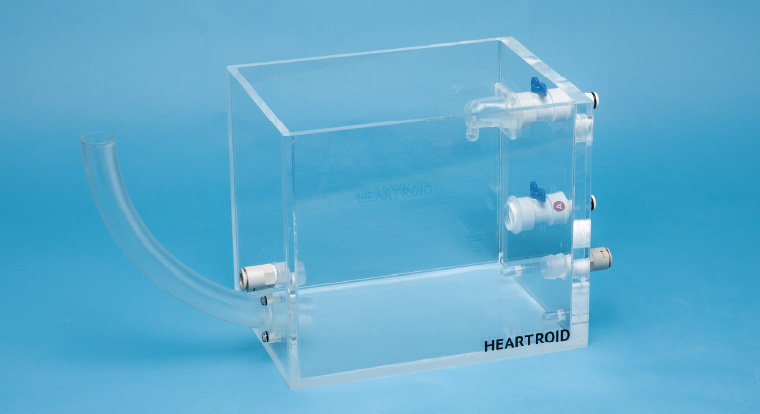

Special tank for TV
Pulsatile Pump Type3
Our uniquely-developed pulsatile pump can be set by 30-60 bpm (1440-2880ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Camera Set
A compact camera with a flexible arm that can provide clear images from various angles.
Damage Protection Case (L)
Capable of containing the whole components.
BoxCaseTrunk.
Capable of containing the components.Detuchable casters (spare casters include).
- Components -
Heart Model for TV
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
Valve part
One of the valves shown below is included.
Special tank for TV
Pulsatile Pump Type3
Our uniquely-developed pulsatile pump can be set by 30-60 bpm (1440-2880ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Camera Set
A compact camera with a flexible arm that can provide clear images from various angles.
Damage Protection Case (L)
Capable of containing the whole components.
BoxCaseTrunk.
Capable of containing the components.Detuchable casters (spare casters include).
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
