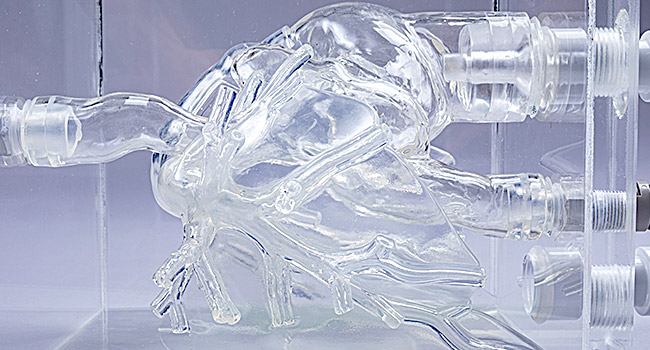

TPVI Model
Structure
This model can facilitate TPVI (Transcatheter Pulmonary Valve I mplantation) simulation training.
![](/img/itemlist/tpvi/tavi_1_1200.png)

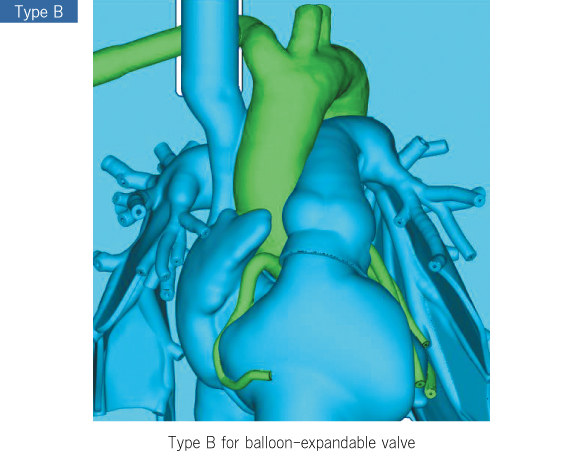

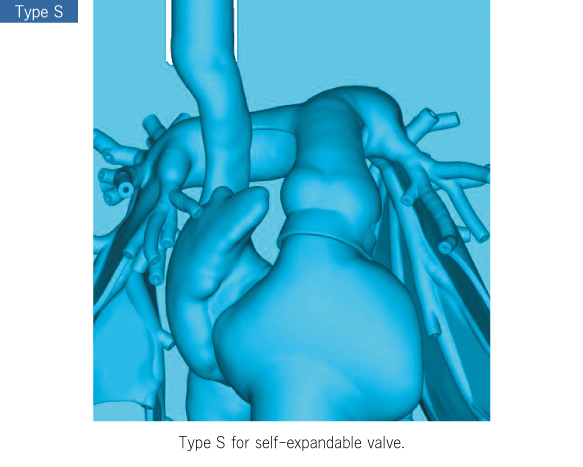

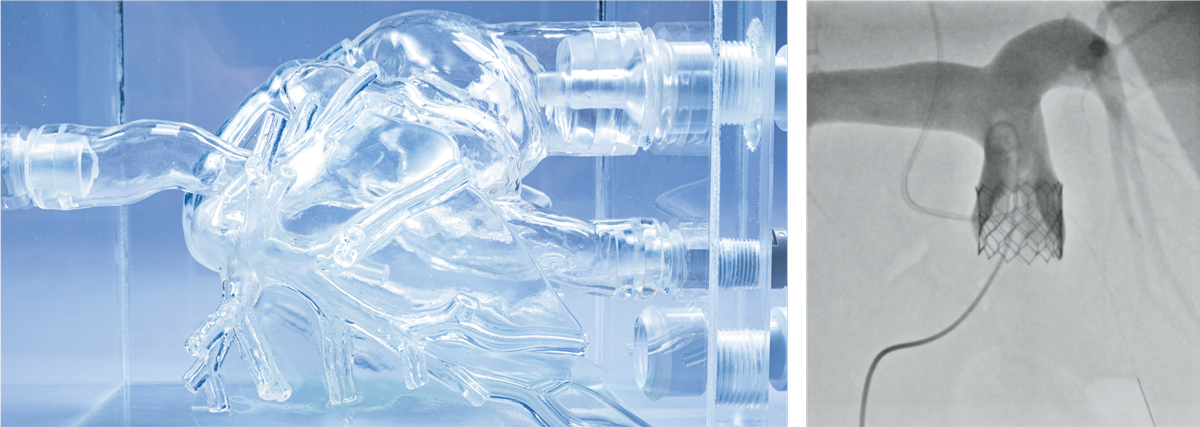

Hybrid design, soft heart model with main pulmonary artery is connected with peripheral p ulmonary arteries, realize a real tactile feeling during the procedure and sooth valve removal process after implantation. T here are two types of models which can be used under X-ray fluoroscopy; type1 (for balloon-expandable valve implantat ion) is equipped with aorta and coronary arteries and type2 is suitable for self-expandable valve.
![](/img/itemlist/tpvi/tpvi_2_583.jpg)
![](/img/itemlist/tpvi/tpvi_3_583.jpg)
- Basic Set -
![TPVI Model](/img/itemlist/tpvi/item_tpvi_1_380x207.jpg)

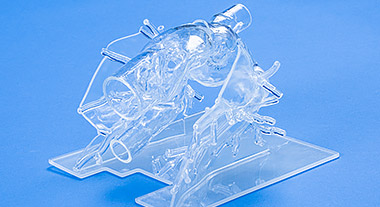

Heart Model for TPVI
A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.
![Special Tank](/img/itemlist/tpvi/item_tpvi_2_380x207.jpg)

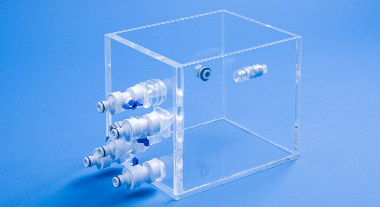

Special Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
![Pulsatile Pump](/img/itemlist/commons/item_coronary_3_380x207.jpg)
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm. (1600-4000ml/min in flow volume.)
![Lubricant](/img/itemlist/commons/item_coronary_5_380x207.jpg)
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
![Tubes with Sheath](/img/itemlist/commons/item_tavi_06_380x207.jpg)
Tubes with Sheath
Special tubes with sheath.
Number of tubes: 1 ( 6Fr )
![Tubes with Sheath (26Fr)](/img/itemlist/commons/item_tavi_05_380x207.jpg)
Tubes with Sheath
Special tubes with sheath.
Number of tubes: 1 ( 26Fr )
![Hoses](/img/itemlist/commons/item_coronary_6_380x207.jpg)
Hoses
Hose with one-touch joint.
- Basic Set -
![TPVI Model](/img/itemlist/tpvi/item_tpvi_1_648x250.jpg)

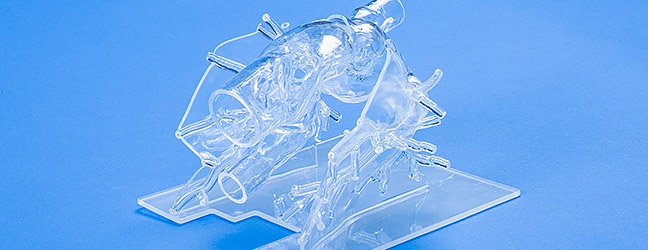

Heart Model for TPVI
A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.
![Special Tank](/img/itemlist/tpvi/item_tpvi_2_648x250.jpg)

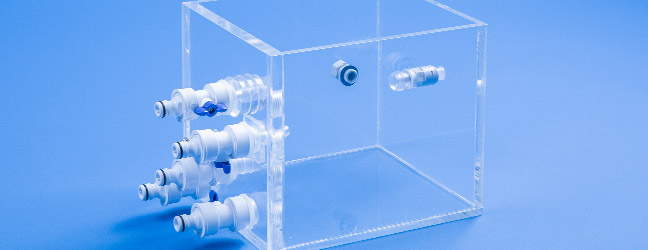

Special Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
![Pulsatile Pump](/img/itemlist/commons/item_tavi_04_648x250_2.jpg)
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
![Lubricant](/img/itemlist/commons/item_coronary_3_648x250.jpg)
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
![Tubes with Sheath](/img/itemlist/commons/item_coronary_5_648x250.jpg)
Tubes with Sheath
Special tubes with sheath.
Number of tubes: 1 ( 6Fr )
![Tubes with Sheath (26Fr)](/img/itemlist/commons/item_tavi_06_648x250.jpg)
Tubes with Sheath (26Fr)
Special tubes with sheath.
Number of tubes: 1 ( 26Fr )
![Hoses](/img/itemlist/commons/item_tavi_05_648x250.jpg)
Hoses
Hose with one-touch joint.
