Leadless PM Model
Ablation

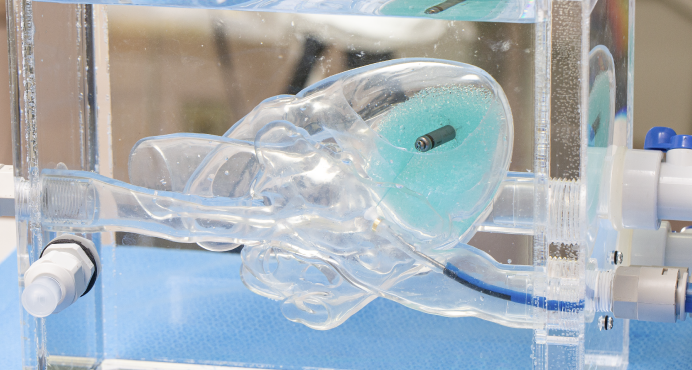

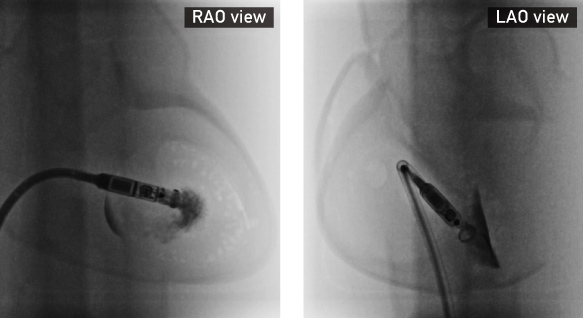

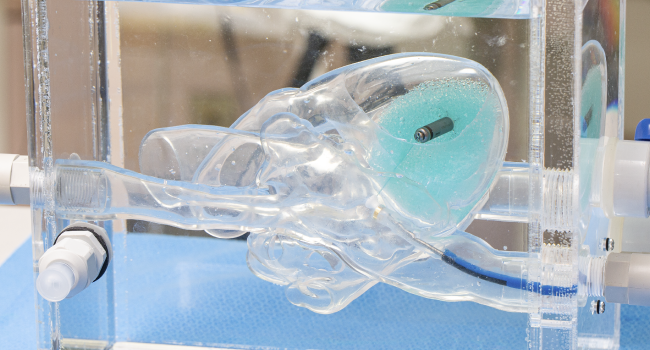

HEARTROID Leadless PM model facilitates simulated training of a leadless pacemaker device implantation procedure, with or without X-ray visualization. The operator is able to simulate full procedure; inserting a delivery catheter from Inferior vena cava via right atrium into right ventricle, confirming the position of the device on the right ventricular septum with contrast under X-ray and deployment followed by checking fixation process.

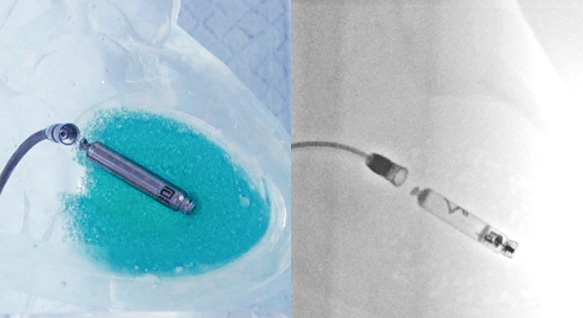

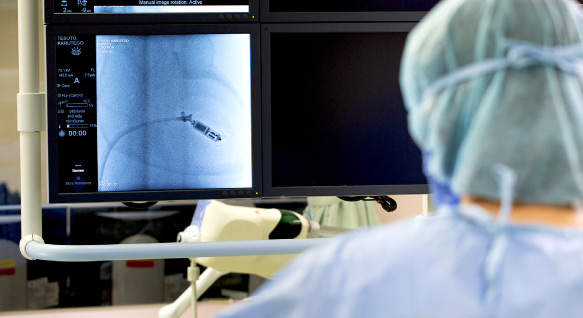

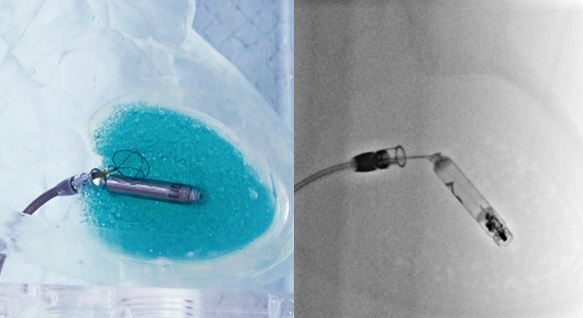

Leadless PM model facilitates both device implantation and retrieval procedure with or without X-ray fluoroscopy. By combining X-ray and camera view, the simulation training will be more efficient by visualizing the behavior of the device in the heart, which is not visible in the real case.
Retrieval procedure
Implantation procedure
- Basic Set -

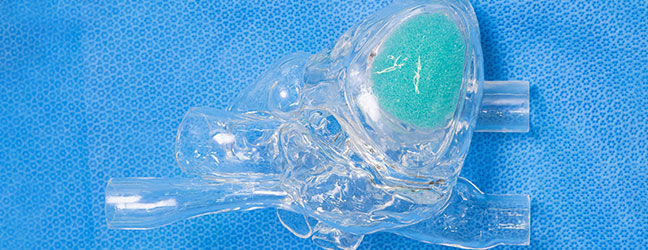

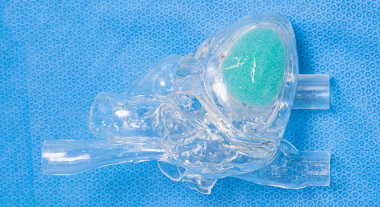

Model for Leadless Pacemaker

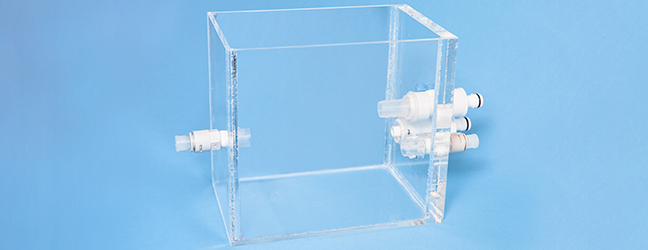

Smart Tank for leadless PM
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (27Fr)
Number of tubes: 1( 27Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
- Basic Set -
Model for Leadless Pacemaker

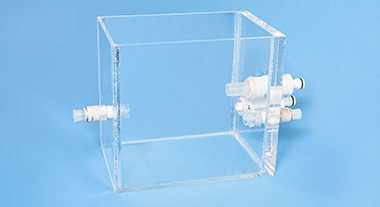

Smart Tank for leadless PM
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (27Fr)
Number of tubes: 1( 27Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
