MV Model
MV Model

MV Model

Structure

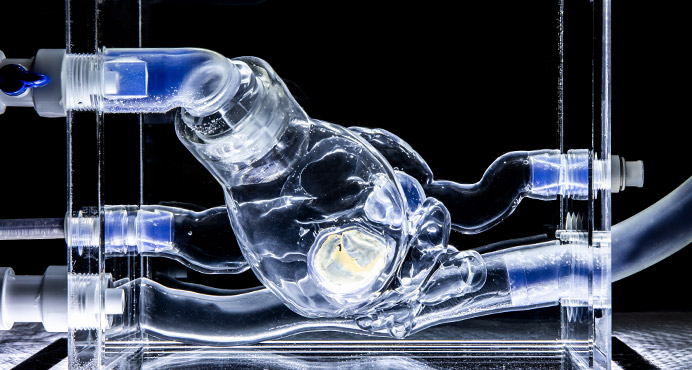

This model can facilitate mitral clipping procedure, which means percutaneous mitral valve repair using the edge-to-edge technique.

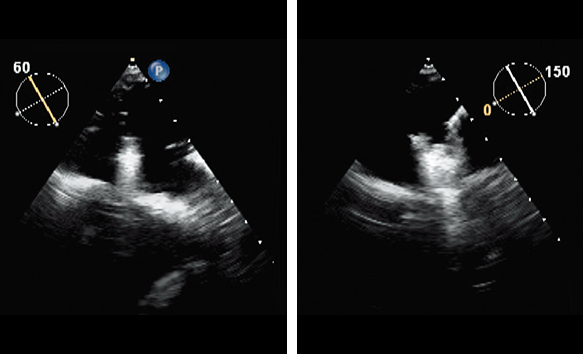

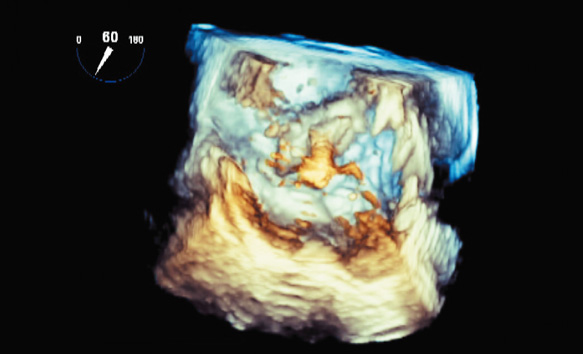

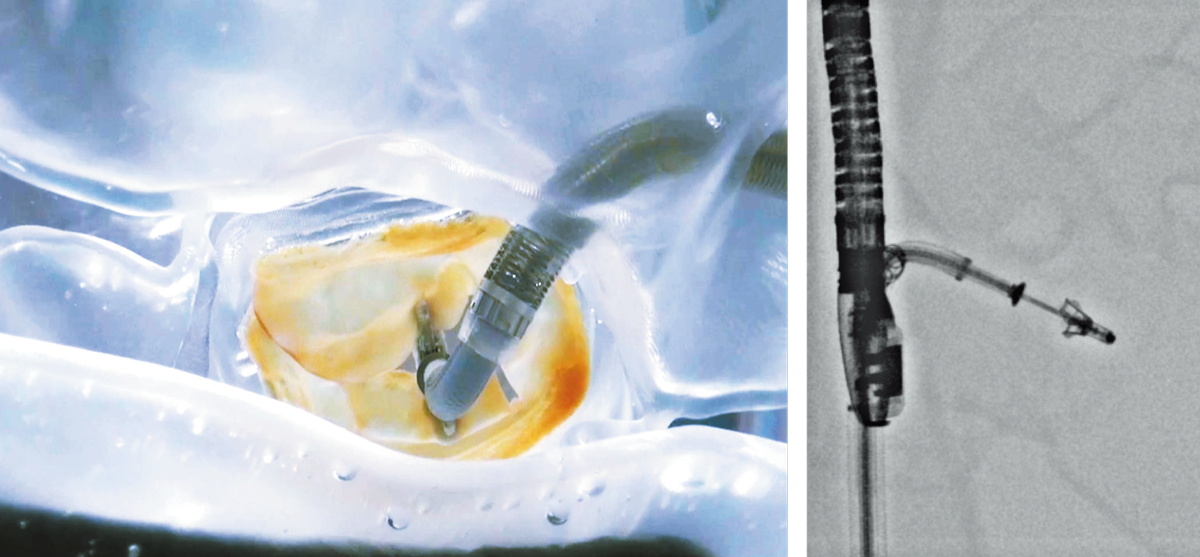

Detachable mitral valve repeats an opening-closing cycle at a designated heart rate through the pulsatile flow generated by the specialized pump. There are two types of models which can be used under X-ray fluoroscopy; one is designed for implementing the procedure with TEE and the other is designed for camera view use.

mv model
mv model

- Basic Set -

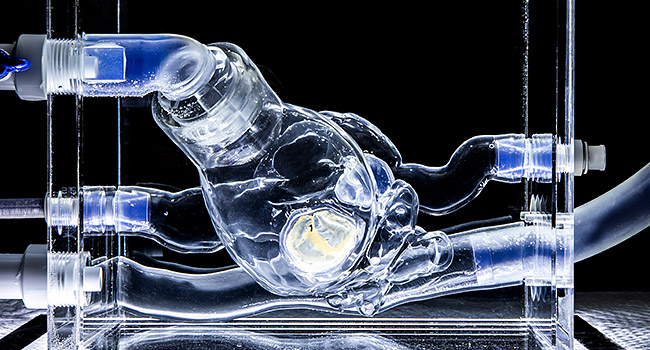

MV Model

Heart Model for MV

A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.

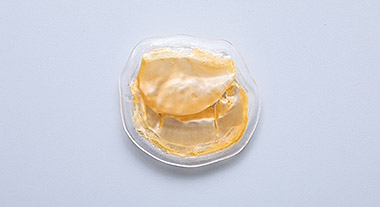

Mitral valve parts

Mitral valve parts

TAVI専⽤Special Tank

Special Tank

Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.

Pulsatile Pump

Pulsatile Pump

Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.).

Lubricant

Lubricant

Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )

Tubes with Sheath

Tubes with Sheath

Special tubes with sheath.
Number of tubes: 2 ( 6・8Fr )

Tubes with Sheath (24Fr)

Tubes with Sheath (24Fr)

Special tubes with sheath.
Number of tubes: 1 ( 24Fr )

専⽤ホース

Hoses

Hose with one-touch joint.

- Basic Set -

MV Model

Heart Model for MV

A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.

Mitral valve parts

Mitral valve parts

Special Tank

Special Tank

Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.

Pulsatile Pump

Pulsatile Pump

Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.

Lubricant

Lubricant

Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )

Tubes with Sheath

Tubes with Sheath

Special tubes with sheath.
Number of tubes: 2 ( 6・8Fr )

Tubes with Sheath (24Fr)

Tubes with Sheath (24Fr)

Special tubes with sheath.
Number of tubes: 1 ( 24Fr )

Hoses

Hoses

Hose with one-touch joint.

Contact



Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
