CAG model
Coronary
This system facilitates the entire training for catheter-based techniques necessary in CAG and basic PCI.
It allows trainees to understand how to manipulate catheters and other angioplasty devices, such as balloon catheters and stents, from bench to cath lab.
RCA・LCA
- Compatible Operating Procedure
-
Model CAG PCI CABG CTO BIF Coronary angiography (CAG) 〇 〇 〇 〇 〇 PCI/CAG for CABG 〇 Thrombectomy for ACS 〇 〇 〇 IVUS / OCT imaging 〇 〇 〇 〇 Fractal Flow Reserve（FFR） 〇 〇 〇 〇 Stent deployment 〇 〇 〇 〇 Atherectomy（Rotablation/OA） 〇 〇 〇 〇 Directional coronary atherectomy
（DCA）〇 Bifurcation procedure
KBT/Culotte & Crush stenting〇 Coronary rupture bail-out 〇 〇 〇 Coiling for coronary perforation 〇 〇 〇 〇 〇 Chronic total occlusion（CTO） 〇 - Basic Set
-

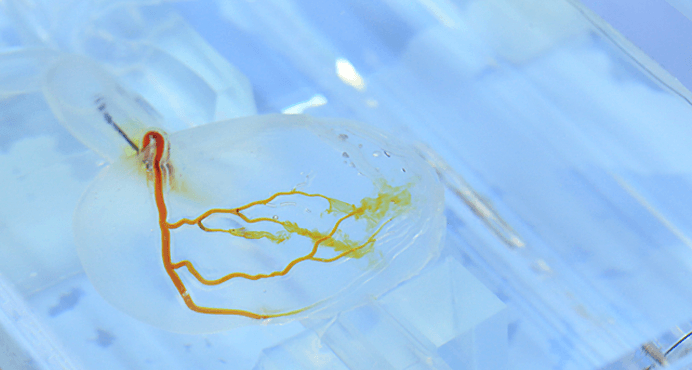

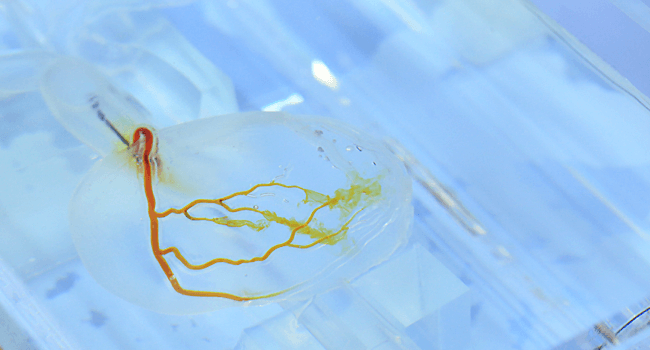

Heart Model for CAG
A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.
Special Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tubes with Sheath
Special tubes with sheath.
Number of tubes: 2 ( 6･8Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
- Heart Model
-
Heart Model for CAG
A heart model suitable for practical training in CAG and PCI under X-ray fluoroscopy in the cath lab. Stent deployment and guide wire manipulation can be simulated with this model.
- Special Tank
-
Special Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
- Pulsatile Pump
-
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
- Tubes with Sheath
-
Tubes with Sheath
Special tubes with sheath.
Number of tubes: 2( 6･8Fr ) - Lubricant
-
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings ) - Hoses
-
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
