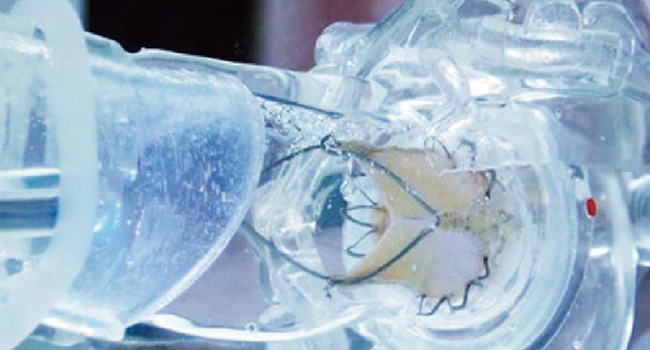

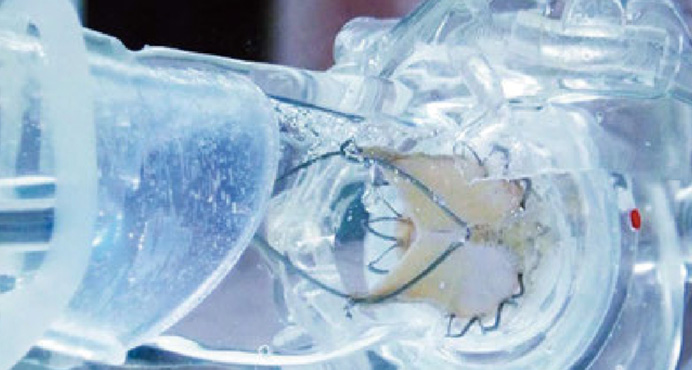

TAVI Videoscope Model
Structure

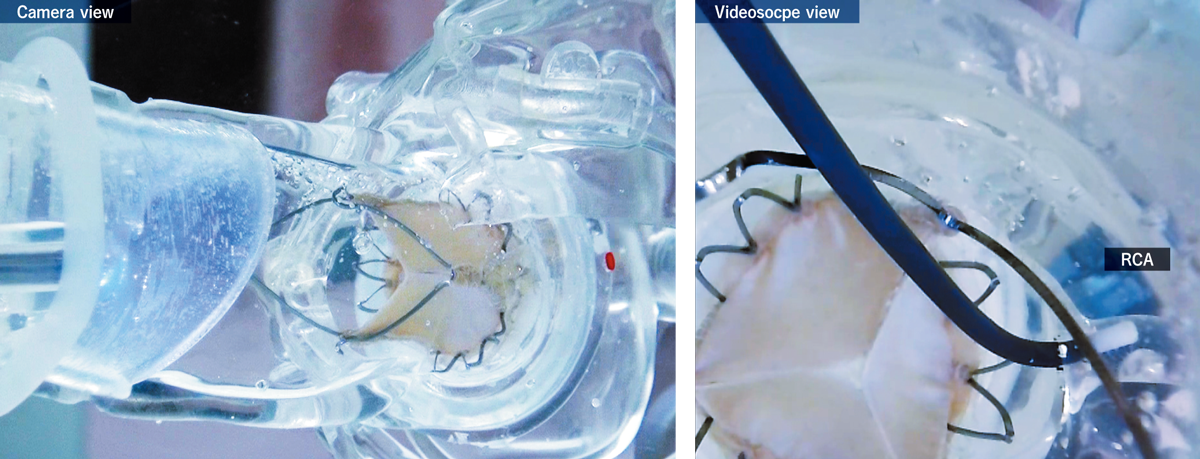

TAVI Videoscope Model can facilitate coronary access simulation training with a videoscope showing En Face view.

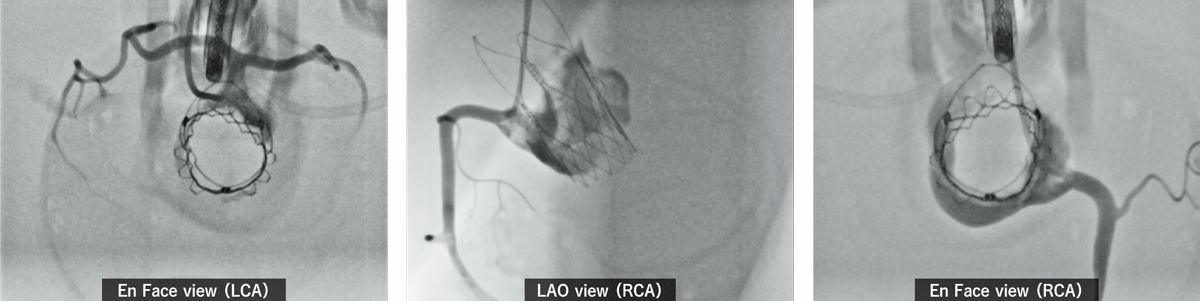

This system can help interventional cardioplogists understand the catheter manipulation whe n coronary access is needed for post-TAVI patients. With X-ray furuoroscopy, one can compare th e routine AP or LAO view and En Face view as shown above.
![](/img/itemlist/tavi-videoscope/tavi-videoscope01.png)
![](/img/itemlist/tavi-videoscope/tavi-videoscope02.png)
Coronary access & Post-TAVI PCI
-

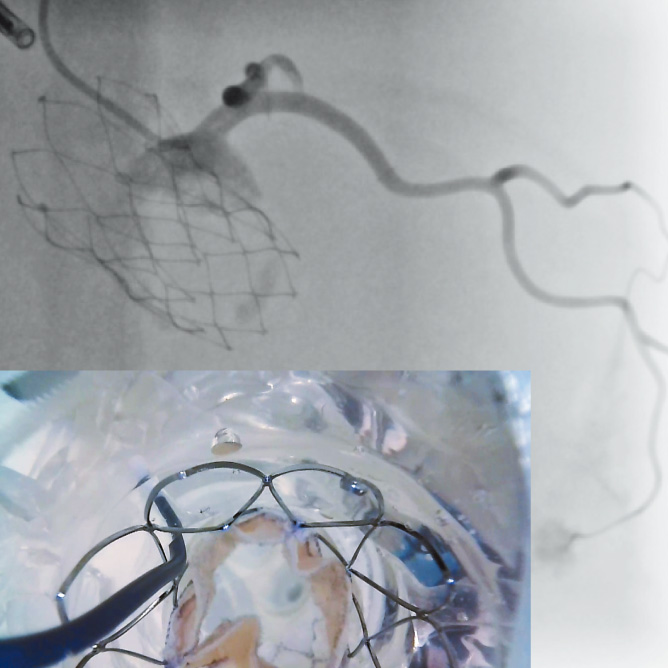

Coronary access
Native Coplanar View AP CAU10
-

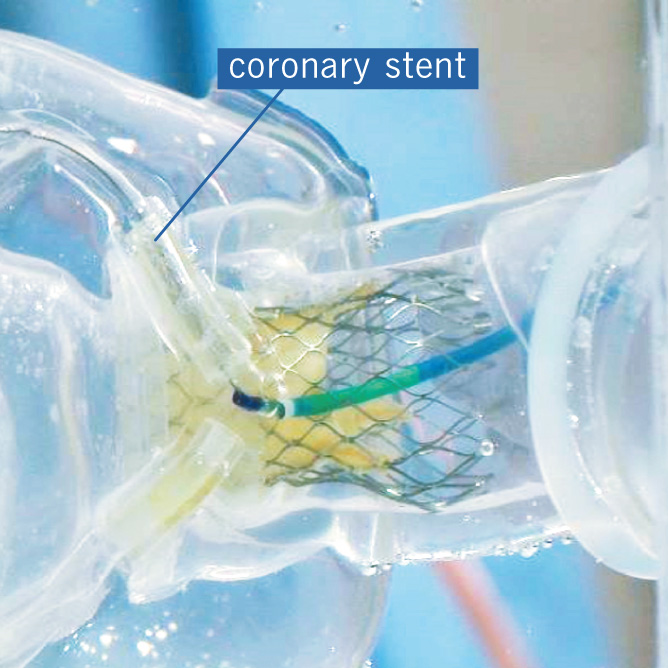

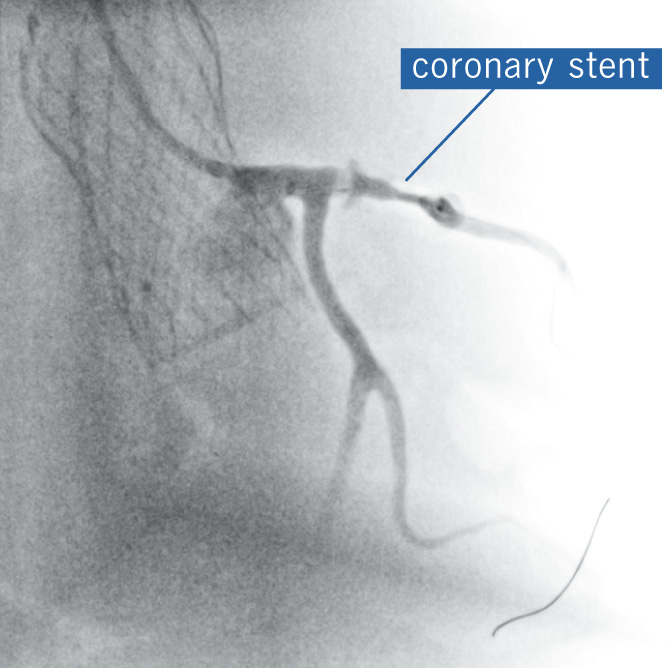

Post-TAVI PCI
Judkins catheter with guide-extention cathter
- Basic Set -
![Heart Model for TAVI](../../img/itemlist/commons/item_tavi_001_380x207.jpg)
Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
![Aortic Regurgitation Model](../../img/itemlist/commons/item_tavi_002_380x207.jpg)
Valve part
One of the valves shown below is included.
![Aorta parts](../../img/itemlist/commons/item_tavi_03_380x207.jpg)
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.
![Special Tank for TAVI](../../img/itemlist/commons/item_tavi_04_380x207_2.jpg)
Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
![Pulsatile Pump for TAVI](../../img/itemlist/commons/item_coronary_3_380x207.jpg)
Pulsatile Pump for TAVI
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
![Tube with Sheath](../../img/itemlist/commons/item_tavi_06_380x207.jpg)
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.6Fr
![Lubricant](../../img/itemlist/commons/item_coronary_5_380x207.jpg)
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
![Hoses](../../img/itemlist/commons/item_coronary_6_380x207.jpg)
Hoses
Hose with one-touch joint.
![Tube with Sheath (24Fr)](../../img/itemlist/commons/item_tavi_05_380x207.jpg)
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
- Basic Set -
![Heart Model for TAVI](../../img/itemlist/commons/item_tavi_001_380x207.jpg)
Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
![Valve part](../../img/itemlist/commons/item_tavi_002_380x207.jpg)
Valve part
One of the valves shown below is included.
![Aorta parts](../../img/itemlist/commons/item_tavi_03_380x207.jpg)
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.
![Special Tank for TAVI](../../img/itemlist/commons/item_tavi_04_648x250_2.jpg)
Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
![Pulsatile Pump for TAVI](../../img/itemlist/commons/item_coronary_3_648x250.jpg)
Pulsatile Pump for TAVI
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
![Tube with Sheath](../../img/itemlist/commons/item_tavi_06_648x250.jpg)
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.
6Fr
![Tube with Sheath (24Fr)](../../img/itemlist/commons/item_tavi_05_648x250.jpg)
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
![Lubricant](../../img/itemlist/commons/item_coronary_5_648x250.jpg)
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
![Hoses](../../img/itemlist/commons/item_coronary_6_648x250.jpg)
Hoses
Hose with one-touch joint.
