TSP Model
Structure
HEARTROID TSP model is designed for training in atrial septal puncture (TSP) procedure guided by imaging modalities such as X-ray fluoroscopy, transoesophageal ultrasound (TEE) and intracardiac echocardiography (ICE).
Camera images can help trainees plan where to puncture and actually confirm the punctured position following the procedure, allowing simulation training for the ideal puncture position according to the purpose, such as catheter ablation or SHD procedures. You can also learn how to navigate with ICE, how to move a steerable catheter and how to perform radiofrequency-based puncturing techniques.
-
TEE view
-
ICE view
-
Atrial septum parts（Detachable and Switchable）
- Components -
Heart Model for TSP/ASD/PFO
Heart model suitable for practical training under X-ray fluoroscopy in the cath lab.
Smart Tank for TSP/ASD/PFO
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump Type3
Our uniquely-developed pulsatile pump can be set by 30-60 bpm (1440-2880ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (16Fr)
Number of tubes: 2( 16Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Camera Set
A compact camera with a flexible arm that can provide clear images from various angles.

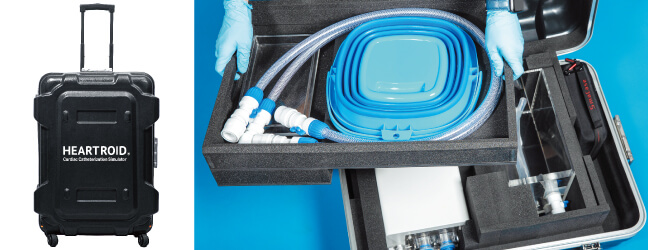

Damage Protection Case (M)
Capable of containing the whole basic set.
BoxCaseTrunk
Capable of containing the basic set.
- Components -
Heart Model for TSP/ASD/PFO
Heart model suitable for practical training under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
Smart Tank for TSP/ASD/PFO
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump Type3
Our uniquely-developed pulsatile pump can be set by 30-60 bpm (1440-2880ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (16Fr)
Number of tubes: 2( 16Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Camera Set
A compact camera with a flexible arm that can provide clear images from various angles.

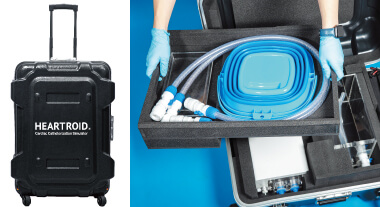

Damage Protection Case (M)
Capable of containing the whole basic set.
BoxCaseTrunk
Capable of containing the basic set.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
