TAVI Model
Structure

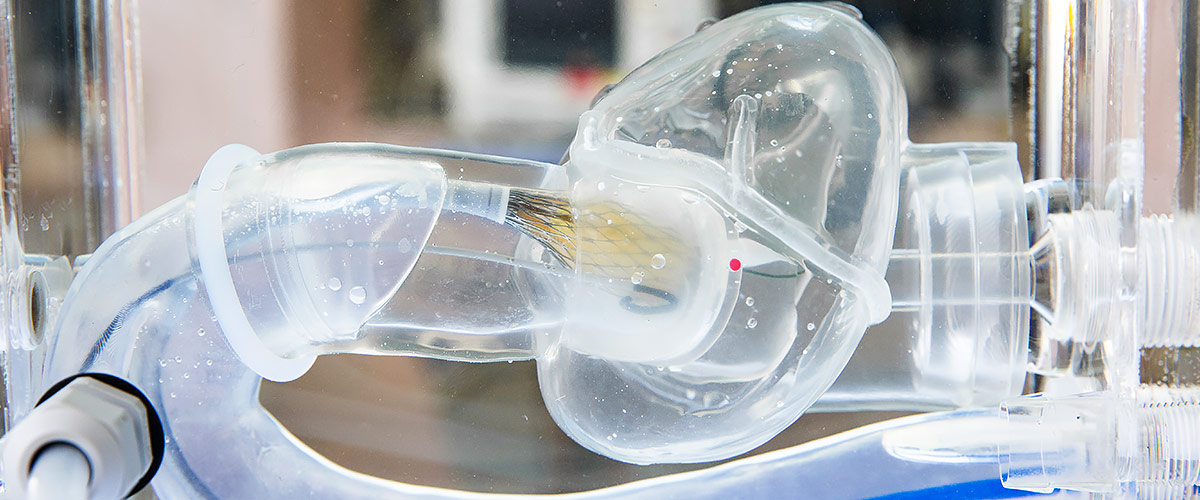

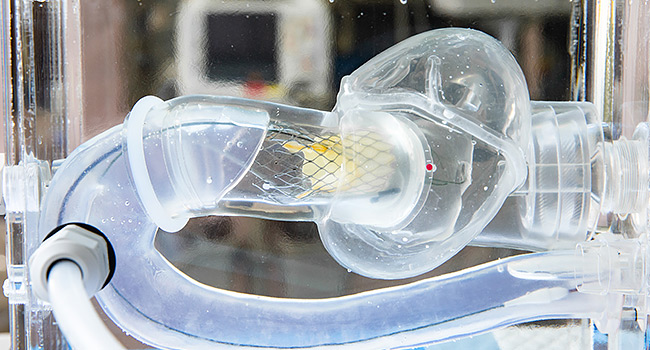

HEARTROID TAVI model facilitates technical training for TAVI (T ranscatheter Aortic Valve Implantation), a novel therapy for aortic valve stenosis.
With a pulsatile pump included in the se t, stent valve deployment under blood flow can be veri - fied by simultaneous aortography.
Cusp overlap Technique with HEARTROID

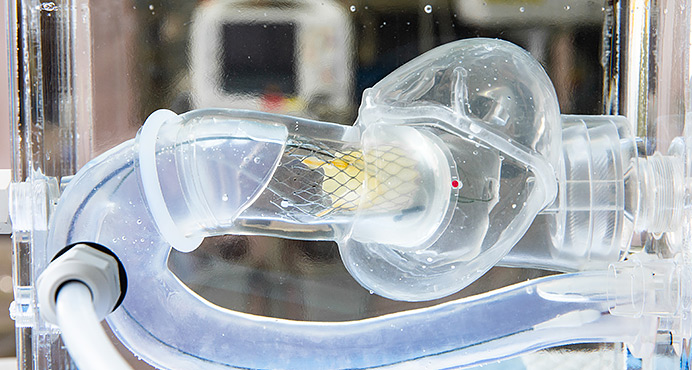

This system is appropriate for both b alloon-expand - able and self-expandable transcatheter stent valves.It is also applicable to both the TF and TA approach. It can be used under various circumstances, from hands-on seminars at an exhibition booth to simula - tion under X-ray fluoro scopy in the cath lab. The de - tachable aortic valve part enables quick preparation and effective training.

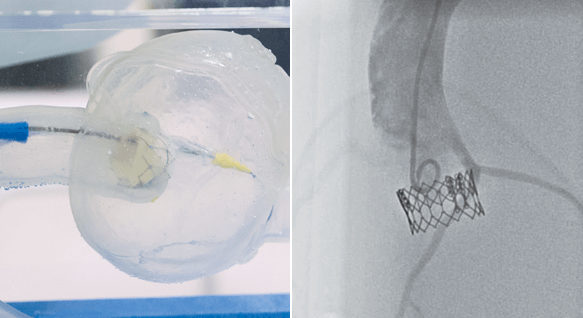

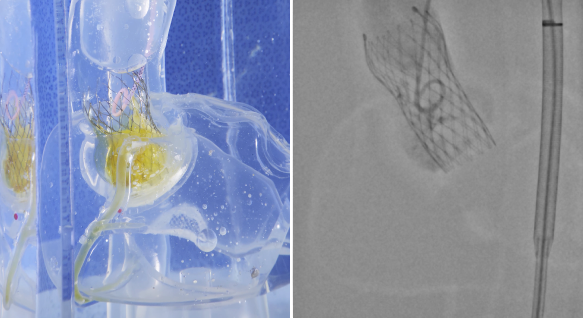

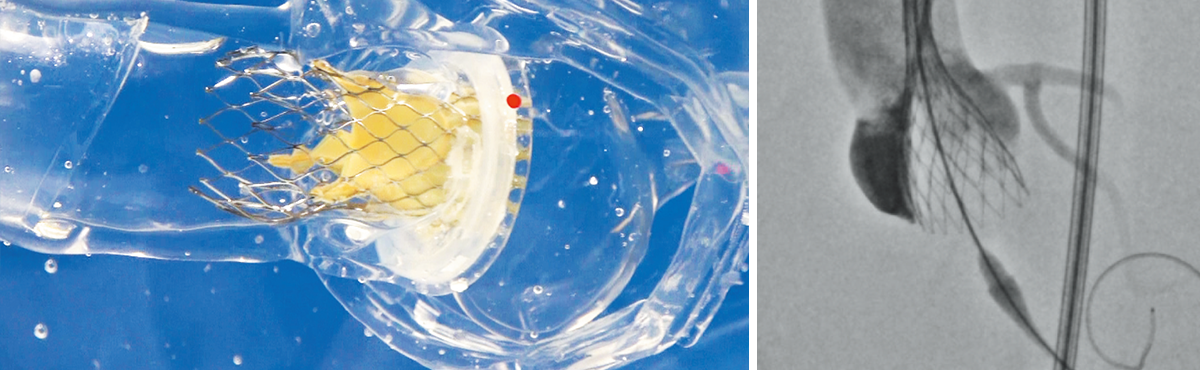

Valve implantation
-

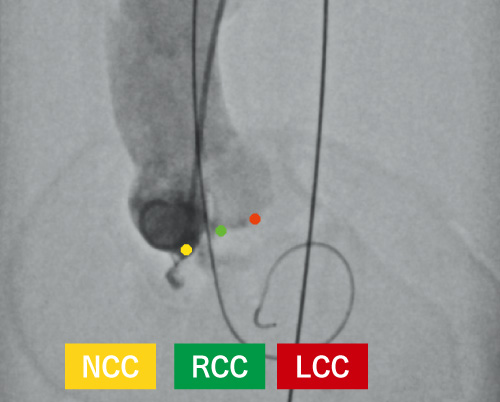

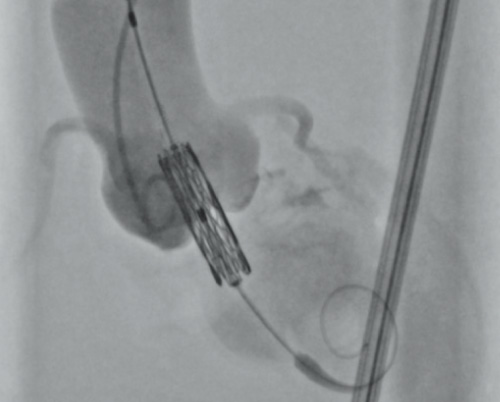

LAO Technique
LAO View LAO17 CAU10

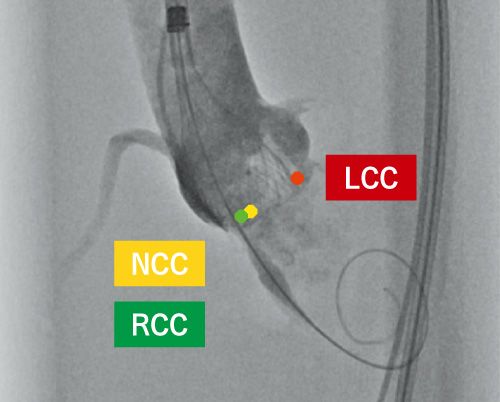

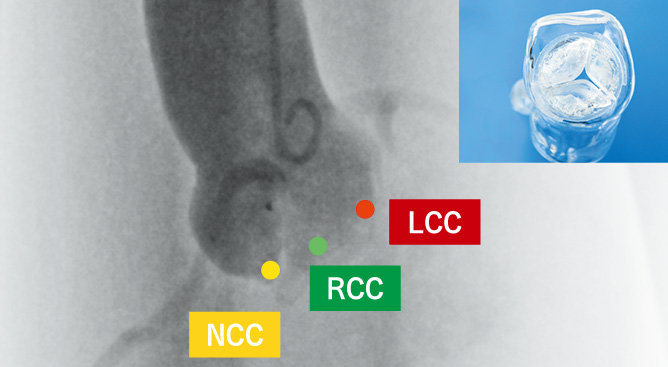

Cusp Overlap Techniquie
-
Native Coplanar View AP CAU10
-

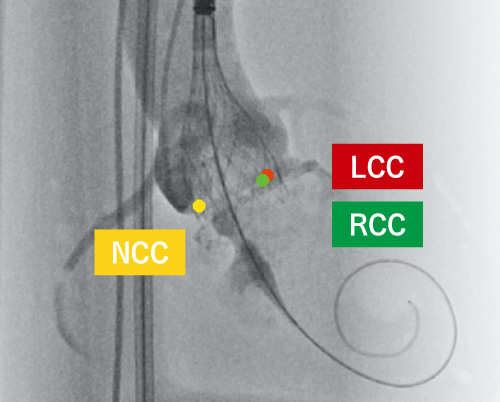

Cusp Overlap View RAO25 CAU15
-
LAO View LAO17 CAU10

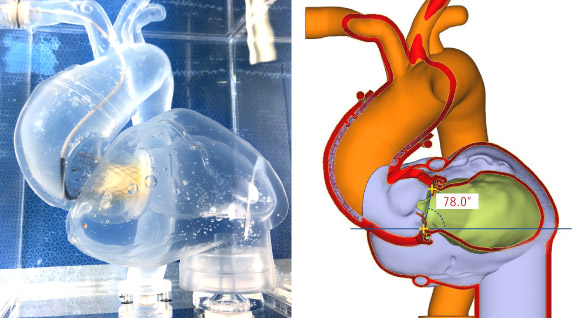

Recommended angles are for TAVI model 37°

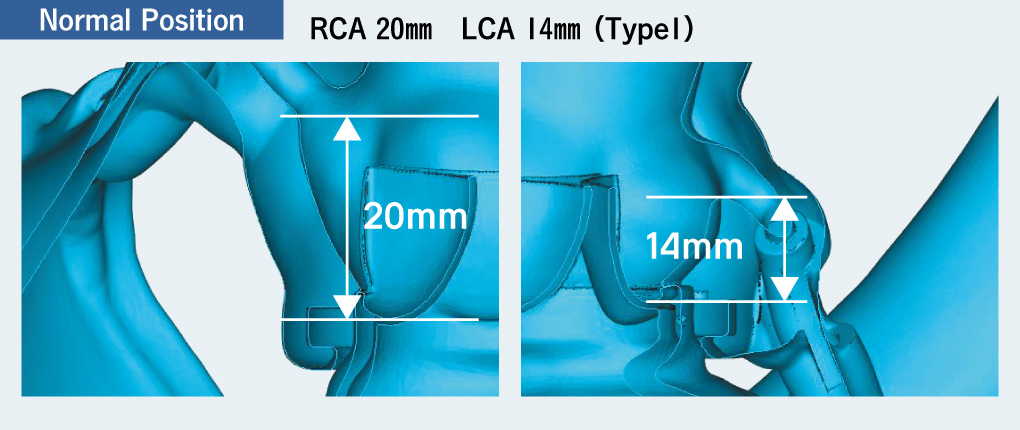

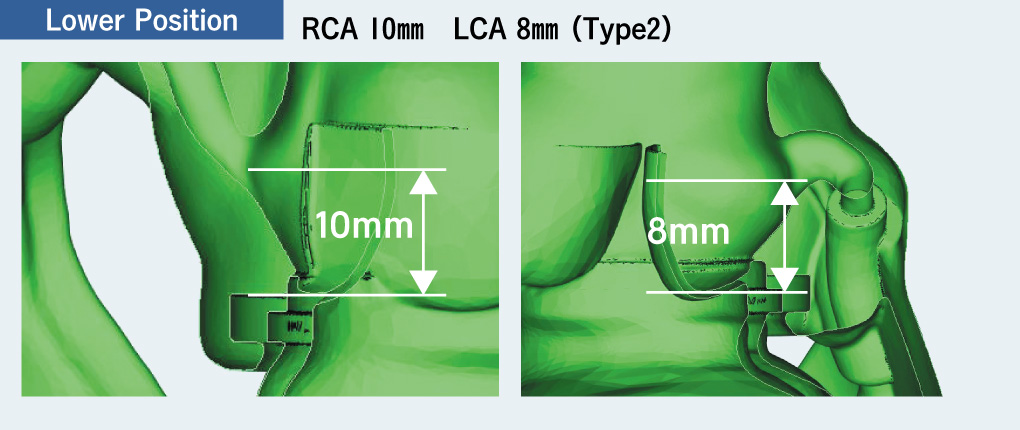

Coronary Height Variety

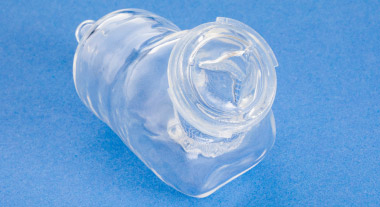

Valve parts(detachable)
-

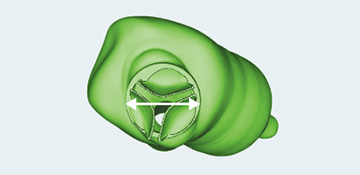

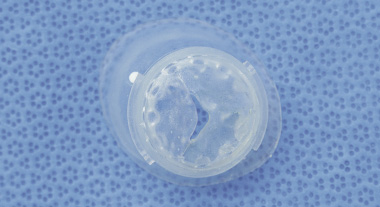

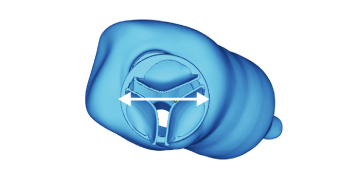

Aortic Stenosis Valve
A detachable aortic valve with severe calcification.
-

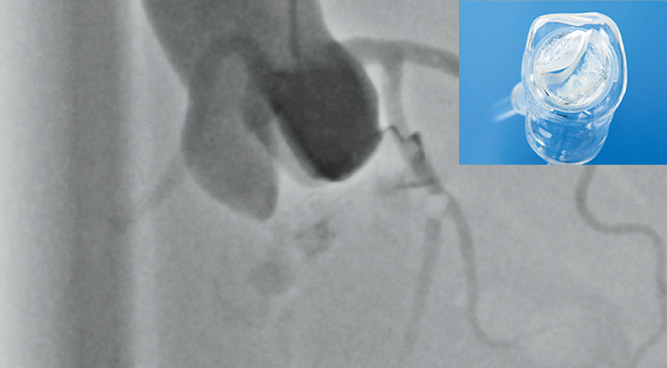

Bicuspid Aortic Valve
Cusp Overlap View RAO25 CAU15
-

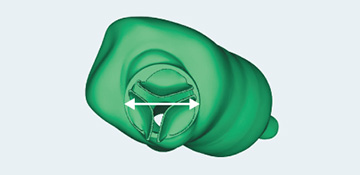

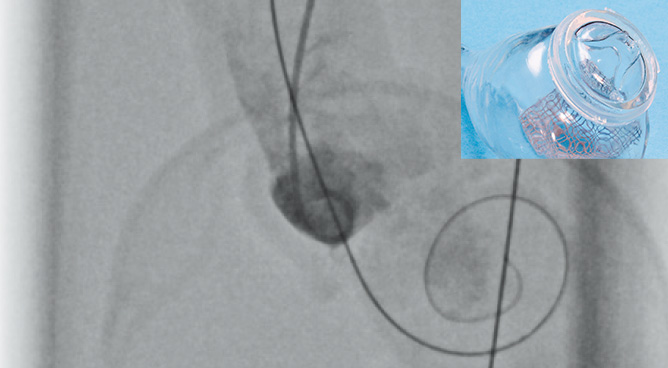

Aortic Regurgitation Valve

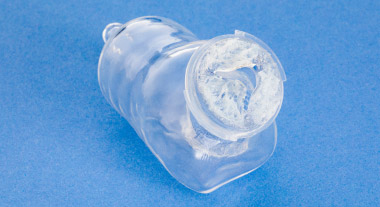

A detachable aortic valve without calcification.
Valve Parts Size（Aortic annulus）
-
Aortic Annulus19mm
Heart bodyType M
-
Aortic Annulus22mm
Heart bodyType M
-
Aortic Annulus25mm
Heart bodyType M
-
Aortic Annulus28mm
Heart bodyType L
Φ19 mm module is compatible only with the type 2 design of the heart body module
TAVI Model Setup Procedure Video
This video provides step-by-step instructions for setting up the TAVI Model. HEARTROID is ready for training in just a few minutes.
- Components -
Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
Valve part
One of the valves shown below is included.
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.
Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump Type2
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1200-4800ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.6Fr
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Camera Set

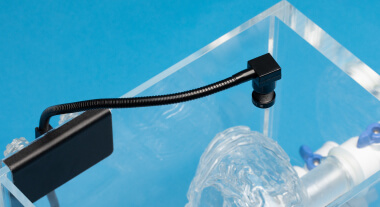

A compact camera with a flexible arm that can provide clear images from various angles.

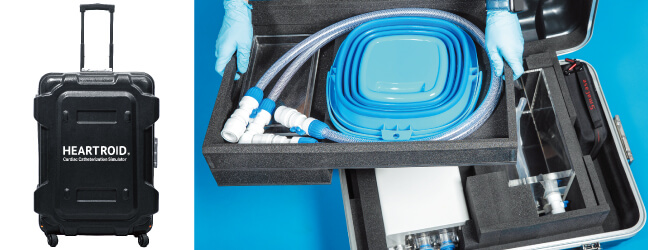

Damage Protection Case (M)
Capable of containing the whole basic set.

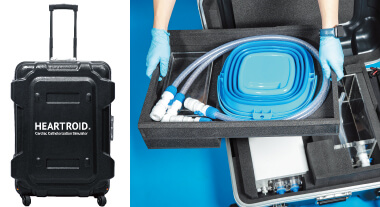

BoxCaseTrunk
Capable of containing the basic set.
- Components -
Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
Valve part
One of the valves shown below is included.
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.
Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump Type2
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1200-4800ml/min in flow volume.). Realistic X-ray images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.
6Fr
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.

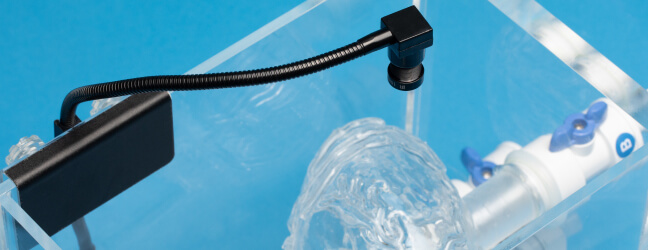

Camera Set
A compact camera with a flexible arm that can provide clear images from various angles.
Damage Protection Case (M)
Capable of containing the whole basic set.
BoxCaseTrunk
Capable of containing the basic set.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
