PVI Model
Ablation

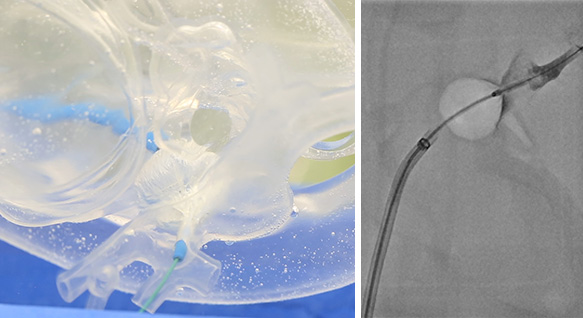

HEARTROID PVI model facilitates simulated training of a pulmonary vein isolation procedure, with or without X-ray visualization.
This model features all four pulmonary veins (RSPV, RIPV, LSPV, LIPV), and ICE (intracardiac echocardiography) is usable when passing through the atrial septum.
- Basic Set -
Heart model for PVI

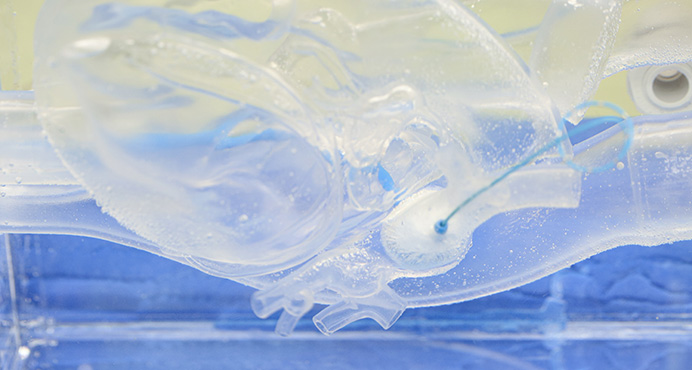

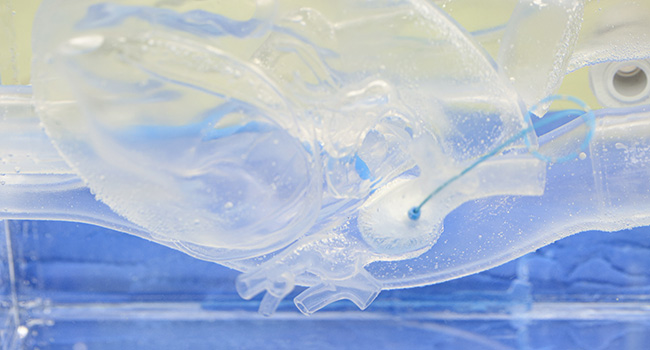

Four-chamber-structured transparent heart model with all four pulmonary veins (RSPV, RIPV, LSPV, LIPV) ,SVC andIVC. Femoral vein and intrajugular ven approaches are possible.

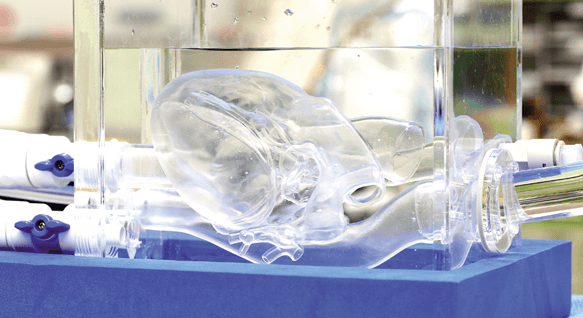

Special Wide Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
- Basic Set -
Heart model for PVI
Four-chamber-structured transparent heart model with all four pulmonary veins (RSPV, RIPV, LSPV, LIPV) ,SVC andIVC. Femoral vein and intrajugular ven approaches are possible.
Special Wide Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
